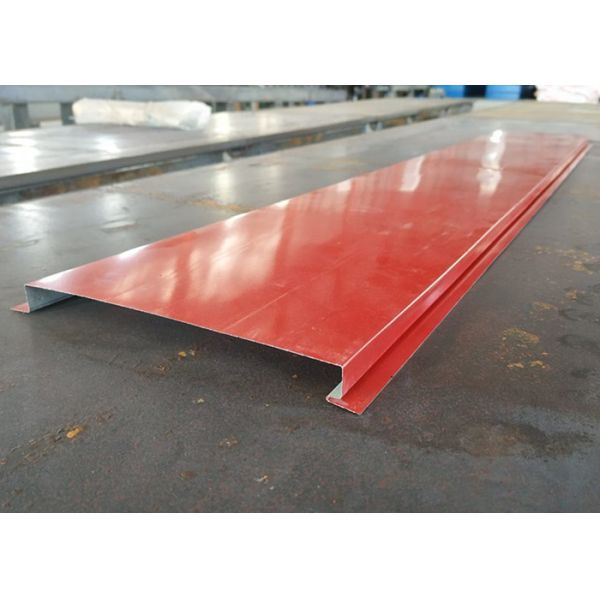

250, 312 and 416mm changeable Soffit panel for walls roof roll forming machine
Features:
#Top quality rollers durably ensure precise rollforming
# 80mm diameter of shaft
# 20mm thickness of frame plate makes the processing more stably
# Famous brand Delta(Taiwan) PLC
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Technical Parameter
| 1 | Material type | Color steel or galvanized steel |
| 2 | Material thickness | 0.3-0.8mm |
| 3 | The panel size | Can produce according to the profile |
| 4 | Forming Speed | 8-12m/min |
| 5 | Material width | Can produce according to ur requirement |
| 6 | The effective width | Can produce according to ur requirement |
| 7 | Application | Roof sheet |
| 8 | The dimension | 5500*1200*1300mm |
| 9 | Forming station | 14 |
| 10 | Diameter of the roller | 70mm |
| 11 | Bracket | Welded with 350 H-steel |
| 12 | Material of shafts: | 45#steel with rough finished and then refined finished |
| 13 | Main power | 3kw |
| 14 | Hydraulic power | 3kw |
| 15 | Cutting system | Hydraulic cutting |
| 16 | Voltage | 380V 50Hz 3Phase |
| 17 | Transmission | Transmitted by the chain-bracket |
| 18 | Material of chain | 45#steel with heat treatment of HRC45-50° |
| 19 | Material of rollers | High quality 45# steel coated with hard chrome 0.05mm |
| 20 | Material of Rack | Complete welded structure of A3 steel plate 18mm thickness |
PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4) Length Error: ±2mm
(5) Language: English and Chinese
(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand
| Working conditions |
| 1. working size | 15m x 2m x 4m |
| 2. Power supply | 6kw |
| 3. Frequency | 50-60HZ |
| 4. Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7. Lift device | 3-5t forklift or crane |
Photos
Installion
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
RFQ
Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.
